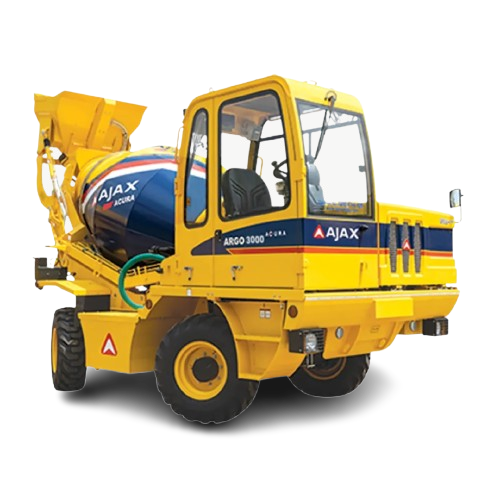

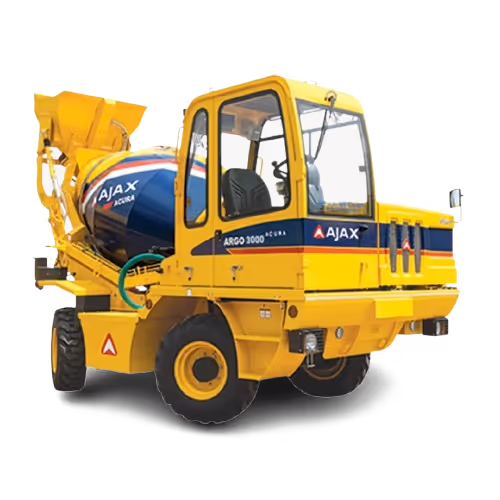

self-loading concrete mixer

A compact powerhouse for your concrete needs. This self-loading concrete mixer combines efficiency with agility, ensuring smooth and precise concrete mixing.

Kirloskar
54.8kw @2200 rpm
4 cylinder inline
CEV stage V engine
Mahindra
55kw @2200 rpm
4 cylinder inline, turbocharged
CEV stage V engine
ARGO
3000

OVERVIEW

Engine

Available Kirloskar & Mahindra
54.8kw @2200 rpm 55kw @2200 rpm CEV stage V

Machine Weight

Unladen Weight 7400 kg

Bucket Capacity

400 ltr

Heavy Duty Tyre

12.5/80-18-16 PR

Water Tank Capacity

600 ltr

Vehicle Speed

0-23 kmph

Drum Output

3 cu m/batch*
*Subject to conditions

Fuel Tank Capacity

100 ltr

TECH SPECS

SLCM ARGO 3000

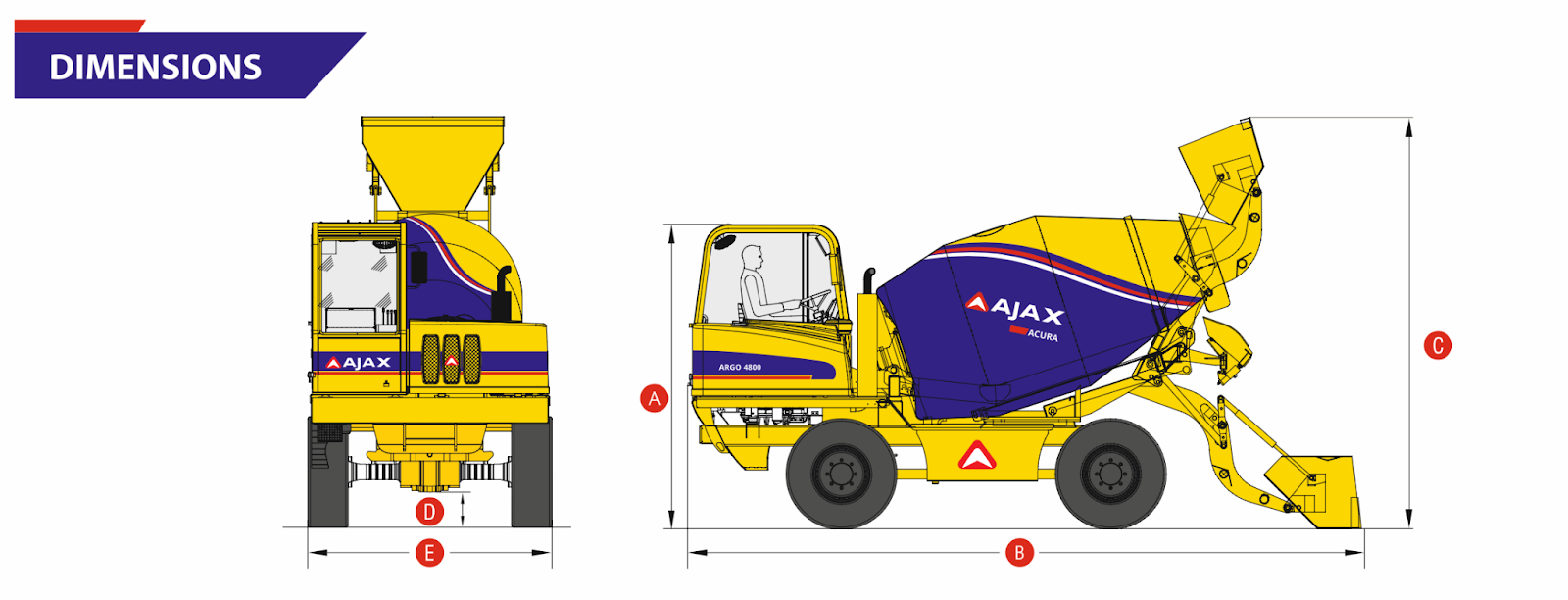

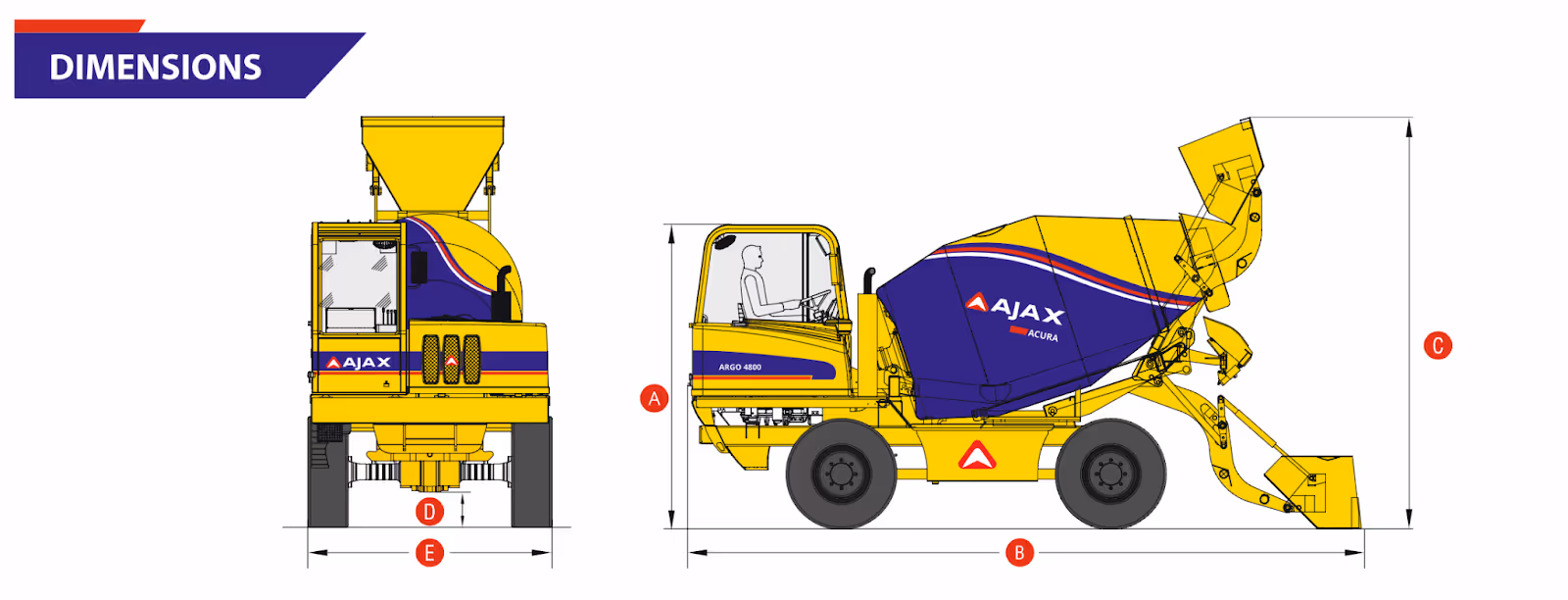

DIMENSIONAL CODEDIMENSIONS IN MM
A3010
B6345
C

3850

D

360

E2370

DIMENSIONS

VIDEOS

self-loading concrete mixer

ARGO 3000

A compact powerhouse for your concrete needs. This self-loading concrete mixer combines efficiency with agility, ensuring smooth and precise concrete mixing.

Kirloskar
54.8kw @2200 rpm
4 cylinder inline
CEV stage V engine
Mahindra
55kw @2200 rpm
4 cylinder inline, turbocharged
CEV stage V engine
A close up of a machine with a digital display.

Concrete Batch Controller

Accurately measures all the ingredients to produce high quality concrete.

A yellow and black truck with a white background.

High Gradeability

Highly efficient in steep inclined terrain. Advanced technology for delivering concrete even at an inclined position.

A close up of a yellow and blue machine.

Self Loading Arm with Hatch Bucket

The Loading arm with tilting hatch bucket ensures smooth flow of material into the drum, thus minimising spillage.

A close up of a machine with a handle.

Ease of Operation

Single joystick for loading operation. The hydraulically operated levers for easy handling of operations.

A diagram of the different types of wheels.

Tight Turning Radius

4 Wheel steering system allows maneuverability in narrow space and allows for tight turning radius. Crab steering enables side maneuverability.

Three pictures of a man sitting on a forklift.

Reversible Operator Post

Provides complete visibility to the operator when the ARGO is in motion or during loading/unloading operation.

A yellow forklift with its doors open.

Ease of Maintanence

Excellent design permits ease of accessibility and maintenance.

A yellow machine with a white container on top of it.

Add-ons to tailor fit your project

Rear view camera. Admixture dosing unit.

Two pictures of a yellow and gray truck.

Ergonomic Design

The cabin is designed to enhance the efficiency of the operator and allowing him to work for longer hours.

A yellow truck with a large wheel on it's back.

Drum Swivel Variant

Now get an extra edge by giving a swivel feature to your drum for unloading operations.

A yellow machine with a hose connected to it.

High Pressure Cleaning

On board water tank coupled with a high pressure jet system will allow you to keep your machine clean at the end of the day.

ApplicationsBuilt for your industry

Irrigation
A group of people standing on top of a dirt hill.
A construction site with a crane and construction equipment.
A group of people standing around a construction site.
A group of construction workers working on a construction site.
A construction site with a bulldozer and construction workers.

AJAX concreting solutions are a familiar sight at Irrigation projects across India, being used for construction of CANAL LINING, AQUADUCTS, WEIR, ANICUT, LIFT IRRIGATION, FLOOD LINE CANALS, CHECK DAMS and other structures.

A yellow truck driving down a dirt road.
A construction site with a construction truck in the background.

Low Height Subways, Bridges, Stations, Retaining Walls.

HYDEL, RENEWABLE ENERGY (Solar & Windmill Foundation), SUBSTATION, TRANSMISSION LINE & DISTRIBUTION.

Road Over Bridge, Road Under Pass, River Over Bridge.

Residential, Commercial Factories, High Rise.

City Roads, Storm Water Drain, Flyovers, Metros, Site Layouting.

Irrigation

AJAX concreting solutions are a familiar sight at Irrigation projects across India, being used for construction of CANAL LINING, AQUADUCTS, WEIR, ANICUT, LIFT IRRIGATION, FLOOD LINE CANALS, CHECK DAMS and other structures.

Railways

Low Height Subways, Bridges, Stations, Retaining Walls.

Power

HYDEL, RENEWABLE ENERGY (Solar & Windmill Foundation), SUBSTATION, TRANSMISSION LINE & DISTRIBUTION.

bridges

The battery capacity of 54 kWh is expected to extend the Sion's range to around 305 km. It has a maximum charging rate of up to 75 kW and therefore an expectant time to a 100% state of charge of around 5 hours at 11 kW, and 60 minutes at 75 kW.

buildings & factories

Residential, Commercial Factories, High Rise.

urban infrastructure

Concreting Equipment manufactured by AJAX are versatile solutions for construction of PMGSY, CMGSY, MAJOR DISTRICT ROADS, STATE and NATIONAL HIGHWAYS.
